Why 2 litres dictates the legal threshold in steam engineering
Under EU Directive 2014/68/EU (Annex II, Table 5), equipment for steam or superheated water (> 110 °C) only falls into mandatory PED Category IV when three conditions are met simultaneously: temperature above 110 °C, pressure above 32 bar, and internal burner/heat exchanger water volume exceeding 2 litres. If the water volume remains 2 litres or less, the assembly falls — regardless of working pressure up to 500 bar — under Article 4(3) SEP (Sound Engineering Practice) and enjoys full inspection exemption.

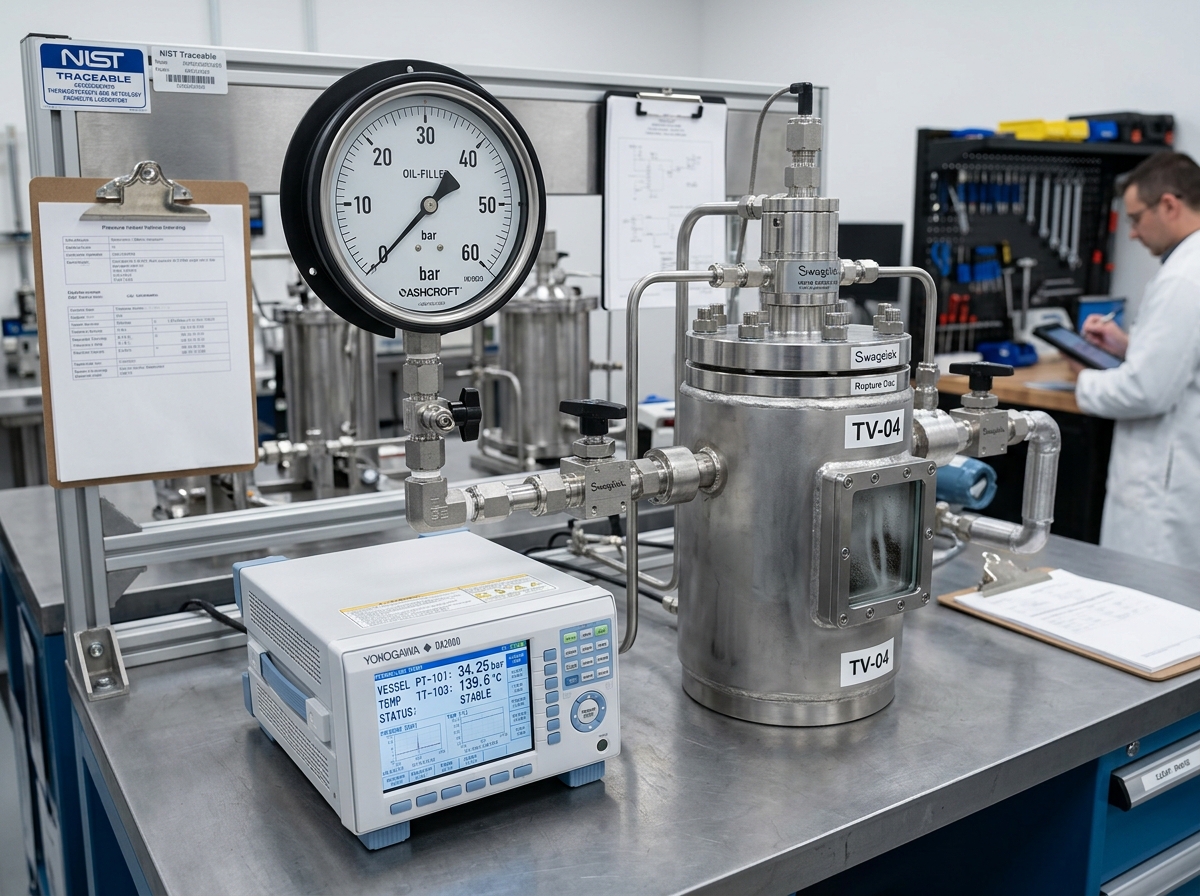

The physics of superheated water & flashing
When water is enclosed under high operational pressure (e.g., 200 bar), its boiling temperature rises well beyond 100 °C. If a rupture occurs, that pressure collapses immediately to atmospheric levels (1 bar). Superheated liquid instantaneously flashes into steam, expanding explosively by approximately 1,600 times its liquid volume.
With an internal volume strictly at or below 2 litres, total stored potential energy is physically limited by design. Potential catastrophic risk is eliminated at source. Above 2 litres, sudden decompression can yield destructive shockwaves and catastrophic scalding hazard for personnel.
Extreme stored energy hazard
In case of coil burst, massive volumes of boiling steam discharge within milliseconds, generating a hazardous pressure shockwave and extreme thermal danger to nearby operators.
Inherently safe design (SEP)
By continuously heating only a minimal volume of water, hazardous energy release is eliminated at the physical source. If the water volume remains 2 litres or less, the assembly falls — regardless of working pressure up to 500 bar — under Article 4(3) Sound Engineering Practice (SEP) and enjoys full statutory inspection exemption.
System A (≤ 2L SEP) versus system B (> 2L Category IV)
| Engineering criterion | System A (≤ 2 litres volume) | System B (> 2 litres volume) |
|---|---|---|
| Physical principle | Micro-mass of superheated pressurized fluid | Large stored energetic fluid volume under pressure |
| PED classification | Article 4(3) SEP (Sound Engineering Practice) | PED Category IV (highest European hazard tier) |
| Energetic release hazard | Negligible blast energy in case of pipe failure | Potentially catastrophic blast & scalding hazard |
| Safety philosophy | Inherent safety: Risk eliminated at source (inherently safe by design) | Engineered mitigation: Heavy mitigation barriers (burst discs, relief valves, Notified Body audits) |
| Statutory inspection | Exempt from commissioning & statutory audits | Mandatory commissioning + biennial recertification |
Benefit from these 3 targeted check questions
Never sign a delivery contract or lease agreement without obtaining written confirmation of these three engineering and legal parameters on the dealer's letterhead:
Water volume of burner/heat exchanger (V)
“What is the exact fluid volume of the burner/heat exchanger in litres? Is it strictly ≤ 2.0 litres (SEP) or > 2.0 litres (Category IV)?”
Commissioning & audit status
“Does this high-pressure unit legally require an on-site pre-commissioning inspection before first field use, and what are the mandatory periodic recertification costs?”
Component & hose freedom
“Am I legally permitted to source certified universal replacement hoses and nozzles, or does non-OEM fitment instantly void the high-pressure unit's assembly CE and insurance?”
What does this mean for fleet procurement?
Selecting an industrial steam assembly with an internal heat exchanger volume strictly ≤ 2 litres provides inherent physical safety. The machine cannot physically generate a catastrophic boiler explosion due to its low liquid mass. This completely eliminates recurrent downtime, costly third-party audit invoices, and statutory shutdown risks.
